AZ Schools Bought MERV 13 Filters. Without a Sealed Housing They Fail.

In the years after the pandemic, Arizona school districts told parents the air at school had been upgraded. The phrase used most often is “hospital-grade.” The product cited most often is a MERV 13 filter. The implication is that the filter is doing the work the label promises.

A standards-body engineer will tell you, on background, that the label and the work aren’t the same thing. We talked to one. His name is Mack Barnhardt. He’s spent decades in HVAC commissioning and field service. The point he keeps coming back to is the same point ASHRAE itself makes, in writing, in its own published standards: a filter that isn’t sealed into its housing doesn’t filter much.

The science isn’t in dispute. The contractors aren’t hiding the answer. ASHRAE wrote the answer down. The schools haven’t read it.

Source: EPA NAAQS revision (Feb 2024); WHO global air quality guidelines (2021); ASHRAE 52.2-2017, 241-2023.

Copy embed code Copied. Paste into your CMS. Free for editorial reuse. Embed includes a do-follow link to the source story.

What MERV Actually Measures

Minimum Efficiency Reporting Value, MERV, is a number from 1 to 16 in the standard residential and commercial range. The number is set by ASHRAE Standard 52.2, last reaffirmed in 2017. The standard establishes a laboratory test method for general ventilation air-cleaning devices.

The test apparatus is sealed. The filter media gets dosed with a standardized aerosol of known particle size distribution at face velocities between 118 and 492 feet per minute. The capture rate is measured across three particle-size ranges, called E1 (0.3 to 1.0 micrometers), E2 (1.0 to 3.0 micrometers), and E3 (3.0 to 10 micrometers).

For a filter to claim MERV 13, the media has to capture at least 50 percent of E1, 85 percent of E2, and 90 percent of E3 in that sealed test apparatus.

That’s the rating. It describes the media. The standard doesn’t test, evaluate, or require any seal performance for the housing the media is later mounted in. There’s no field-condition test in 52.2 at all.

ASHRAE Standard 62.1, on Ventilation for Acceptable Indoor Air Quality, sets minimum MERV ratings for ventilation systems by occupancy class. Recent versions push MERV 13 in many non-healthcare commercial spaces. The language focuses on the filter’s MERV. It doesn’t impose a housing seal performance test either.

This is the gap that a building manager who buys a MERV 13 filter, drops it in the existing frame, and tells the school board the air is “hospital-grade” walks straight through.

The Standard That Says It Out Loud

In 2023 ASHRAE published Standard 241, Control of Infectious Aerosols. The standard was written in the wake of the pandemic and it requires a MERV 13 minimum, MERV 14 preferred, for HVAC filters used to control infectious aerosols.

It also names the bypass problem in language a school board can read without an engineering degree:

“A filter needs to be installed so that all the air goes through the filter. If this doesn’t happen, the air that goes around the filter will not get cleaned. This can be the same as using a lower MERV filter.”

That sentence is a standards body, on the record, telling the country that the wellness claim collapses without a seal.

The arithmetic is straightforward. A MERV 13 filter rated 90 percent efficient on E3 particles delivers roughly 72 percent effective filtration if 20 percent of the supply air bypasses around the edges. Effective efficiency equals one minus the bypass fraction times the media efficiency. The label on the box says MERV 13. The system performs at something closer to MERV 8 or 9.

Why It Matters: PM2.5 in the Body

PM2.5 is fine particulate matter at 2.5 micrometers in diameter or smaller. Particles that small bypass the upper airway, deposit deep in the lungs, and can enter the bloodstream.

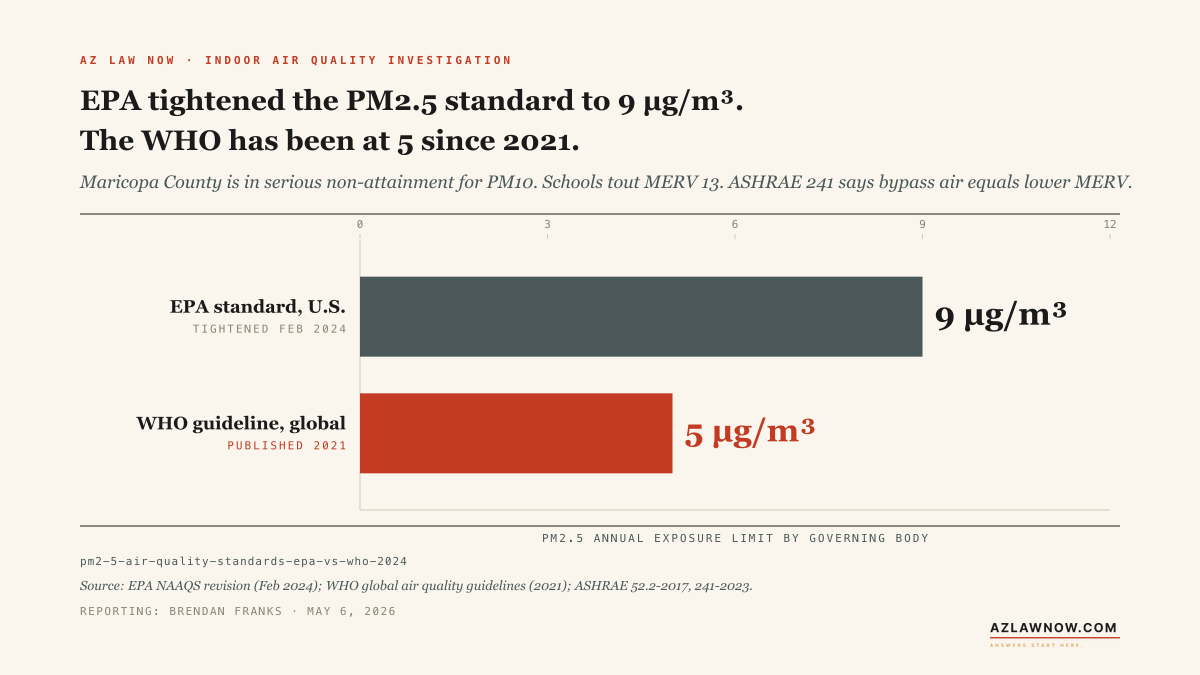

In February 2024, EPA finalized a tightening of the annual PM2.5 National Ambient Air Quality Standard from 12 micrograms per cubic meter to 9. The 24-hour standard stayed at 35. The World Health Organization’s 2021 air quality guideline is tighter still: 5 micrograms per cubic meter on the annual mean.

The peer-reviewed health record is broad and consistent.

• Di and colleagues at Harvard, publishing in the New England Journal of Medicine in 2017, analyzed Medicare beneficiaries from 2000 to 2012 and found a 7.3 percent increase in all-cause mortality for each one-microgram-per-cubic-meter increase in long-term PM2.5 exposure.
• Burnett and colleagues, in the Proceedings of the National Academy of Sciences in 2018, estimated 4.2 million deaths per year globally attributable to long-term outdoor PM2.5 exposure under the integrated exposure-response model.
• Sunyer and colleagues, in PLOS Medicine in 2015, followed primary-school students in Barcelona and found that traffic-related air pollution exposure during school hours was associated with slower cognitive development at ages 7 to 10.
• Volk and colleagues, in JAMA Psychiatry in 2013, linked prenatal and early-life traffic-related particulate exposure to higher autism odds.
• Alter and Whitman, in a 2024 meta-analysis in Environmental Health, found PM2.5 exposure is associated with childhood IQ loss on the order of 0.27 Full-Scale IQ points per microgram per cubic meter.

The injury isn’t in question at the published-science layer. The dispute, when it gets to a courtroom, is over what the building did to manage a known hazard.

Maricopa County Starts Behind

Phoenix is a hard place to filter.

Maricopa County is in serious non-attainment for PM10 under the Clean Air Act. PM10 is the broader category that includes the PM2.5 fraction. The federal designation reflects the county’s persistent failure to meet the air quality standard for coarse particulate. Designations under EPA’s 2024 PM2.5 9-microgram standard are pending finalization.

The relevant fact for indoor air quality at a school is that the air being pulled into the building’s HVAC system in Phoenix starts from a non-attainment baseline. Filtration is the line of defense. Bypass undoes that defense in the room where children sit for seven hours a day.

What ESSER Bought, and What It Didn’t

The federal Elementary and Secondary School Emergency Relief fund, ESSER, sent billions through the Arizona Department of Education during the pandemic and afterward. Districts used ESSER for ventilation upgrades. ADE published recommendations for what ventilation spending could include.

ESSER bought filters. ESSER bought air-handling units. ADE’s published recommendations included monitoring equipment among allowable categories.

ESSER did not, in any public reporting we located, fund a systematic housing-seal retrofit across Arizona’s school inventory. There is no public Arizona Department of Education line item for “filter housing replacement” or “bypass leak remediation” at the level we could pull. The funded line items are filters, units, monitors. The housing the filter sits in, by and large, is the same housing that was in the wall before the pandemic.

This is the retrofit gap. The filter was upgraded. The frame around it wasn’t. ASHRAE 241 says, in writing, that air going around the filter performs as if a lower MERV had been installed. The retrofit gap is the negligence theory.

The Headline No District Has Written

We searched public reporting for any Arizona school district publishing a PM2.5 reading from inside its own buildings. We didn’t find one.

Phoenix Union, Mesa Public, Scottsdale Unified, Chandler Unified, and Deer Valley. None of them, on the public-facing pages we located, has shared a single in-school particulate reading or the methodology behind one.

Districts publish bond budgets. Districts publish facility upgrades. Districts publish marketing brochures. Districts have installed expensive filters and told parents the air is hospital-grade.

No district, in publicly available reporting, has installed sensors and told parents what the actual particulate concentrations inside the classrooms are.

That absence is the headline. It’s not a typo. It’s not an oversight. The reading either exists internally and isn’t published, or it doesn’t exist at all. Both outcomes are reportable. Both invite a public records request.

The Arizona Tort Frame

Arizona has no specific HVAC maintenance mandate at the state level. The Arizona Department of Education doesn’t have one. The Arizona School Facilities Board posts preventive maintenance recommendations but doesn’t enforce a sealing or housing performance standard. ASHRAE 62.1 and 241 are voluntary consensus standards that some local building codes adopt by reference.

Premises liability sits on top of that gap. An Arizona property owner has a duty to keep premises reasonably safe for invitees. Notice of a dangerous condition can be actual, constructive (the condition existed long enough to discover), or by creation. The closest historical Arizona analogs to indoor air negligence are nuisance cases involving outdoor odors and contaminants. We did not locate a controlling Arizona appellate opinion squarely on HVAC negligence or indoor air quality premises liability.

That absence is itself a story. It means an Arizona parent with a defensible PM2.5 exposure case isn’t barred by adverse precedent. It also means an Arizona court has never set the floor.

The clock is short. ARS 12-542 imposes a two-year statute of limitations for personal injury torts. ARS 12-821.01 imposes a 180-day Notice of Claim deadline against any public entity, which a school district is, and ARS 12-821 then requires the lawsuit itself to be filed within one year of accrual, not the two years that applies to private defendants under ARS 12-542. The 180-day clock starts running once a parent reasonably should have known about the injury and its cause. The discovery rule applies generally in Arizona for cumulative-exposure injuries, but it isn’t a reliable backstop. The first day a parent connects a child’s persistent respiratory symptoms or cognitive decline to the school environment is, in the most plaintiff-favorable reading, the day the clock starts. Talk to a lawyer before it runs.

The Industry Source on the Record

Mack Barnhardt has worked HVAC commissioning, field service, and balance testing for decades. The phrase he keeps using when we asked about MERV 13 retrofits in school buildings is the same phrase ASHRAE 241 uses: the air goes where the air can go. If the housing isn’t sealed, the air goes around the filter. The filter doesn’t filter the bypass.

He’s seen it on the ground. Drop-in filters sized close enough to look right but not gasketed at the edges. Frames warped from years of pulling and replacing. Pressure differential gauges that haven’t been calibrated since installation. Maintenance logs that were never started.

What he flags as the structural problem isn’t malice. It’s that the wellness brochure went out before the engineer finished the walkthrough. The school told the parents what the brochure said. The brochure described a sealed laboratory test result. The brochure was technically accurate about the filter, and meaningfully wrong about the system.

What This Series Will Do

This is the first piece in a three-part investigation.

• Part one (you’re reading it): the mechanical reality of bypass, the standards body language naming it, and the AZ regulatory and tort frame.
• Part two: a “Check Your School” data dive. We’ll publish public records request templates and the results we get back from named Arizona districts, including HVAC service invoices, pressure differential logs, and ESSER spending breakdowns.
• Part three: the legal roadmap. PM2.5 exposure as the basis for high-value injury claims. “Failure to maintain” as the negligence pivot. The maintenance-records argument and what spoliation looks like in this fact pattern.

If you have HVAC service records, pressure differential logs, ESSER spending detail, internal correspondence, or a child or family member who has been diagnosed with a respiratory or cognitive condition that you believe traces to a school or workplace HVAC system in Arizona, contact AZ Law Now. We report from primary sources. We protect the identities of people who share documents when asked.

The standard says the bypass doesn’t filter. The filter on the wall is real. The performance is what’s on the standard, not what’s on the brochure.
